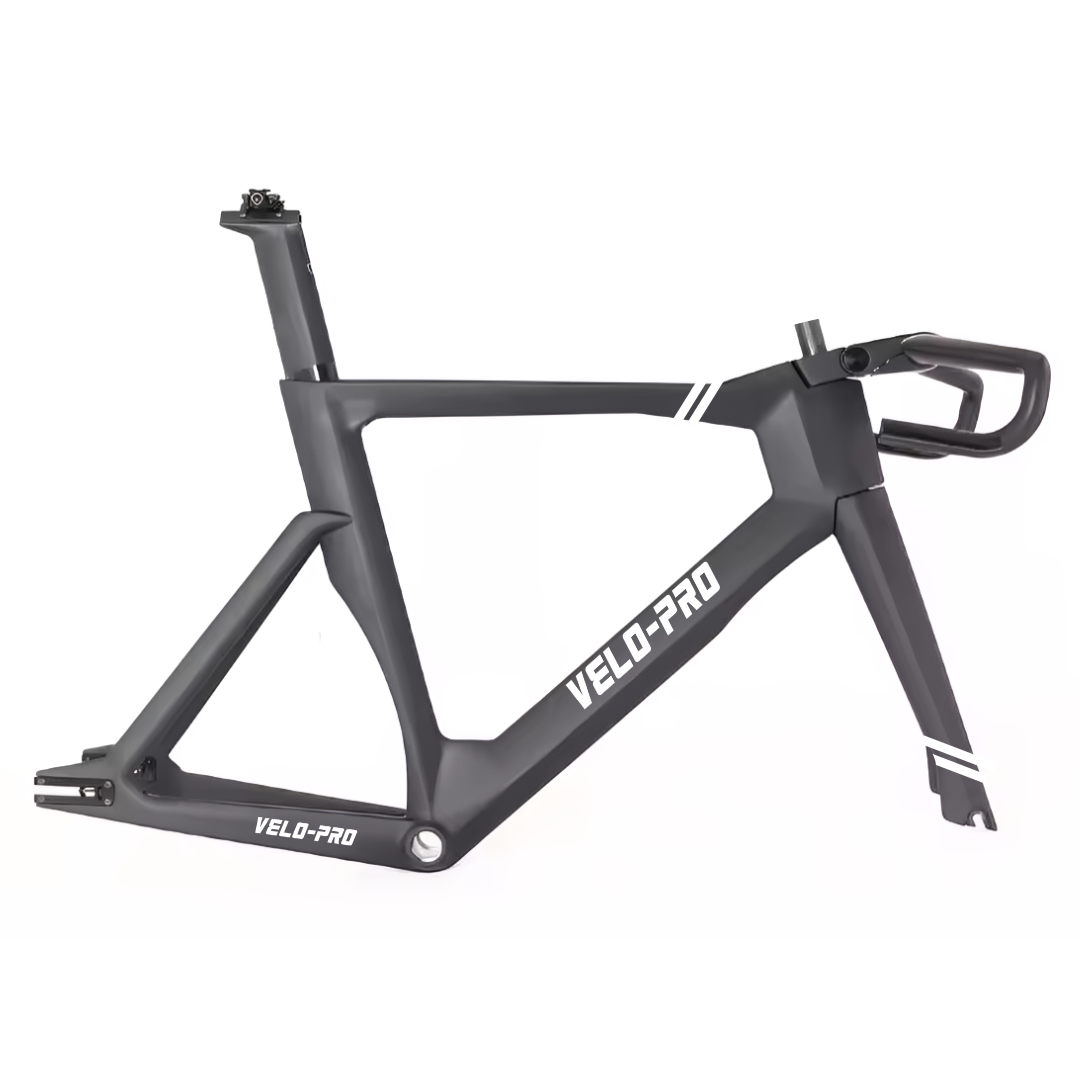

Eclipse V2 Track Frame

The Eclipse track bike frame is designed to be aerodynamic while still being able transfer all your power to your speed with minimal losses. This bike values stiffness just as much as aerodynamics. This frame can be compared to the top frames in the market at a much better price including a 12 month warranty.

DISCLAIMER:

Handlebars and headstem are not included

Crank arm clearance to rear chain stay when using bottoms brackets different to the suggested one could lead to low clearance. This frame is not suitable for shimano cranksets.

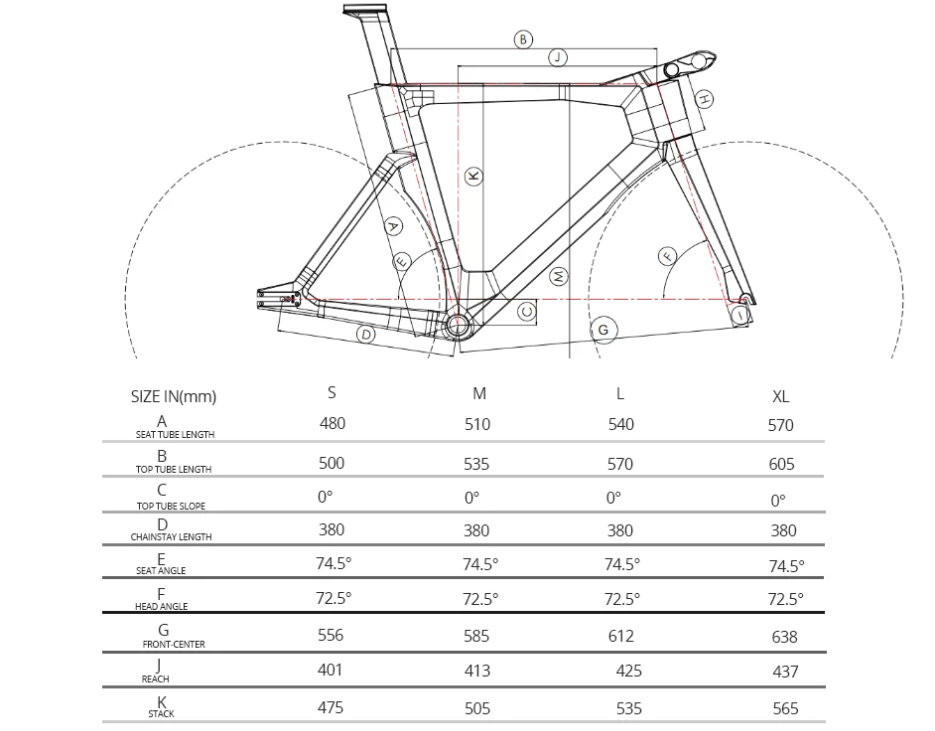

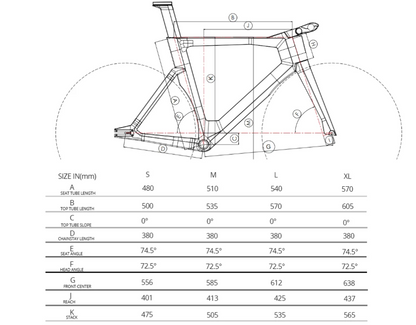

Specifications

• Size: S, M, L, XL
• 700x28c tire clearance
• Weight: 1450G (SIZE S\ W/O METAL PARTS)

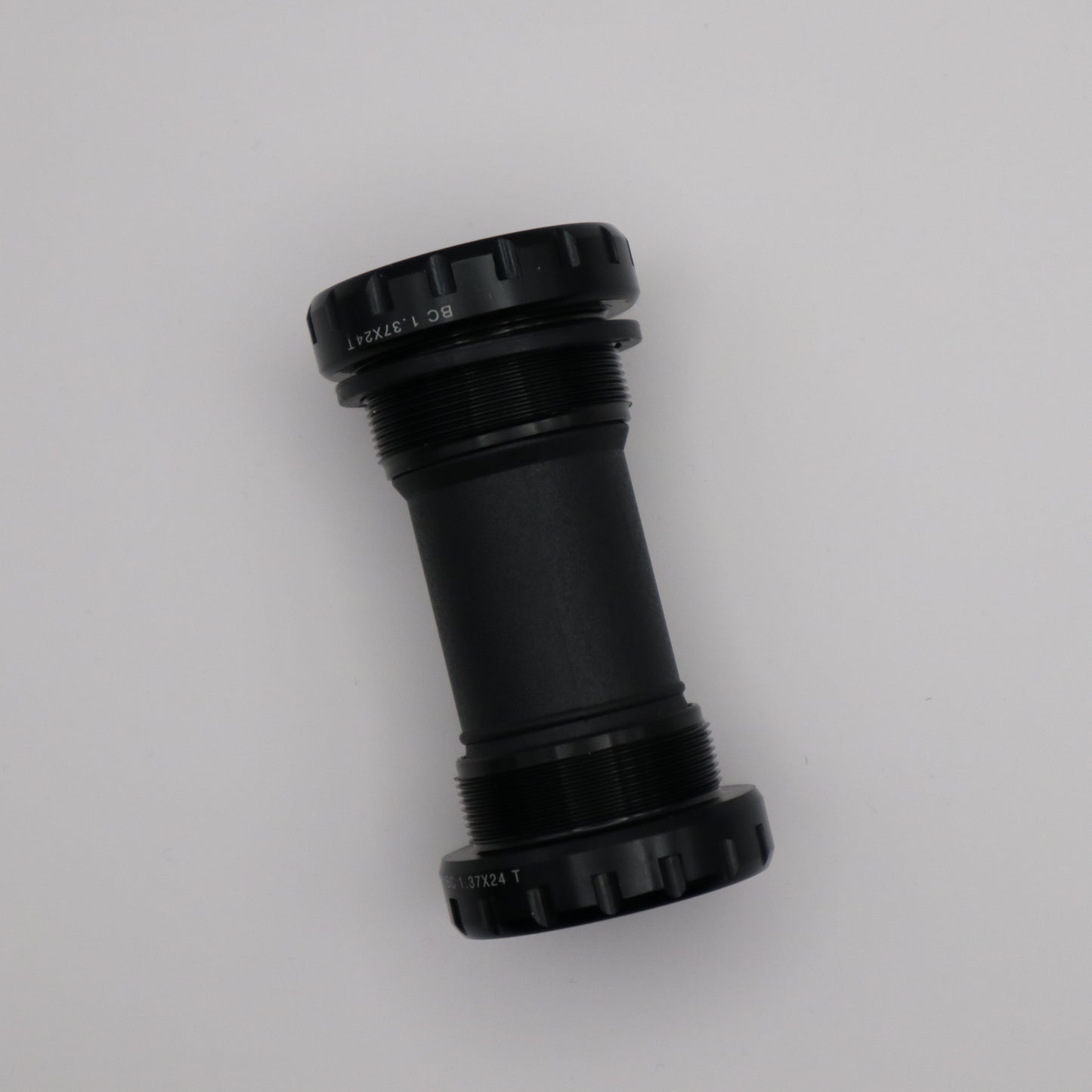

• Recommended Bottom Bracket: BSA
• Coating: Glossy
• Material:  T800 Carbon-Fiber
• Suggested max rider weight: 120kg

 Frameset includes:

• 1x Seatpost
• 1x Saddle clamp (steel saddle rails)
• 1x Seatpost clamp
• 1x Headset bearings and bearing spacers set
• 1x Headset compression plug

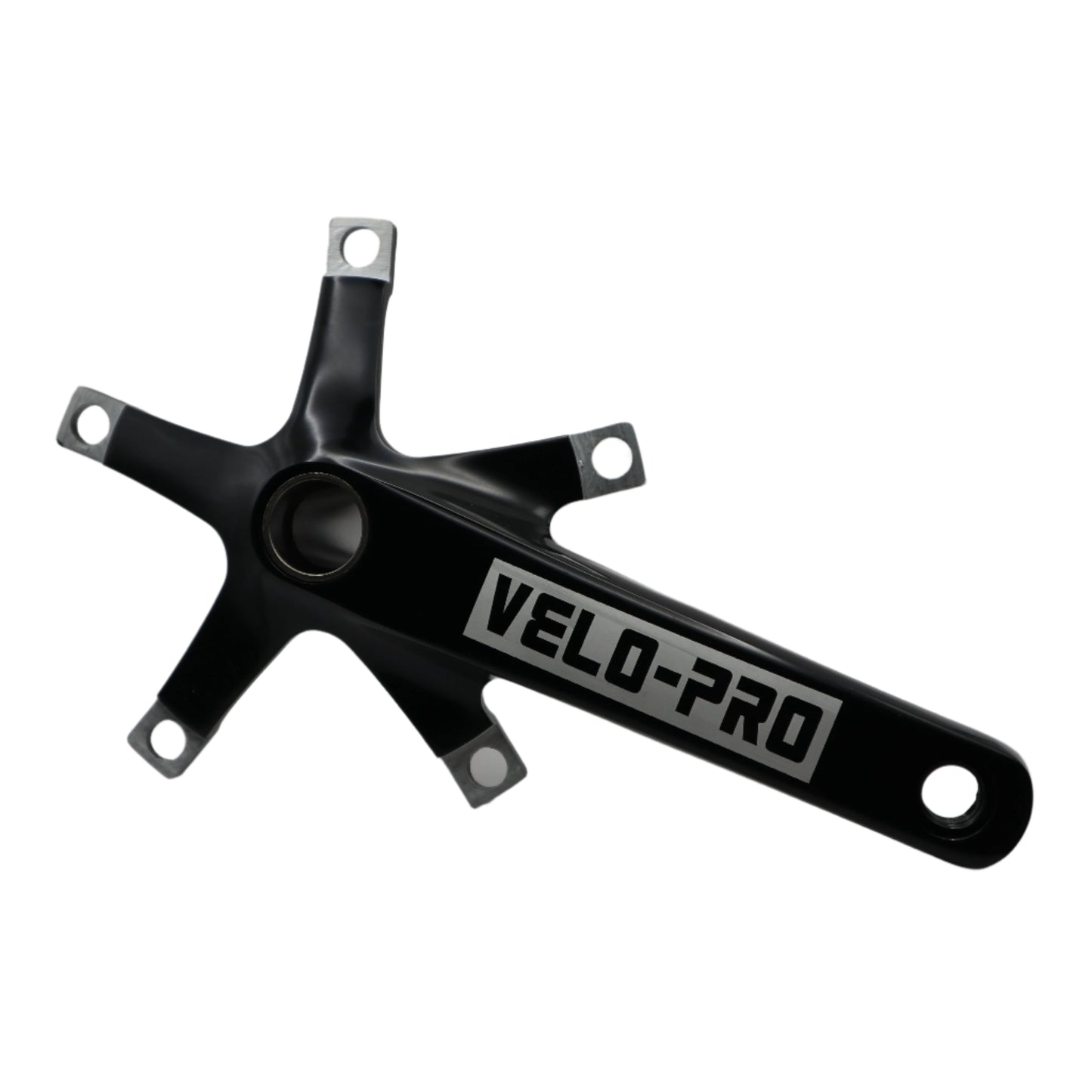

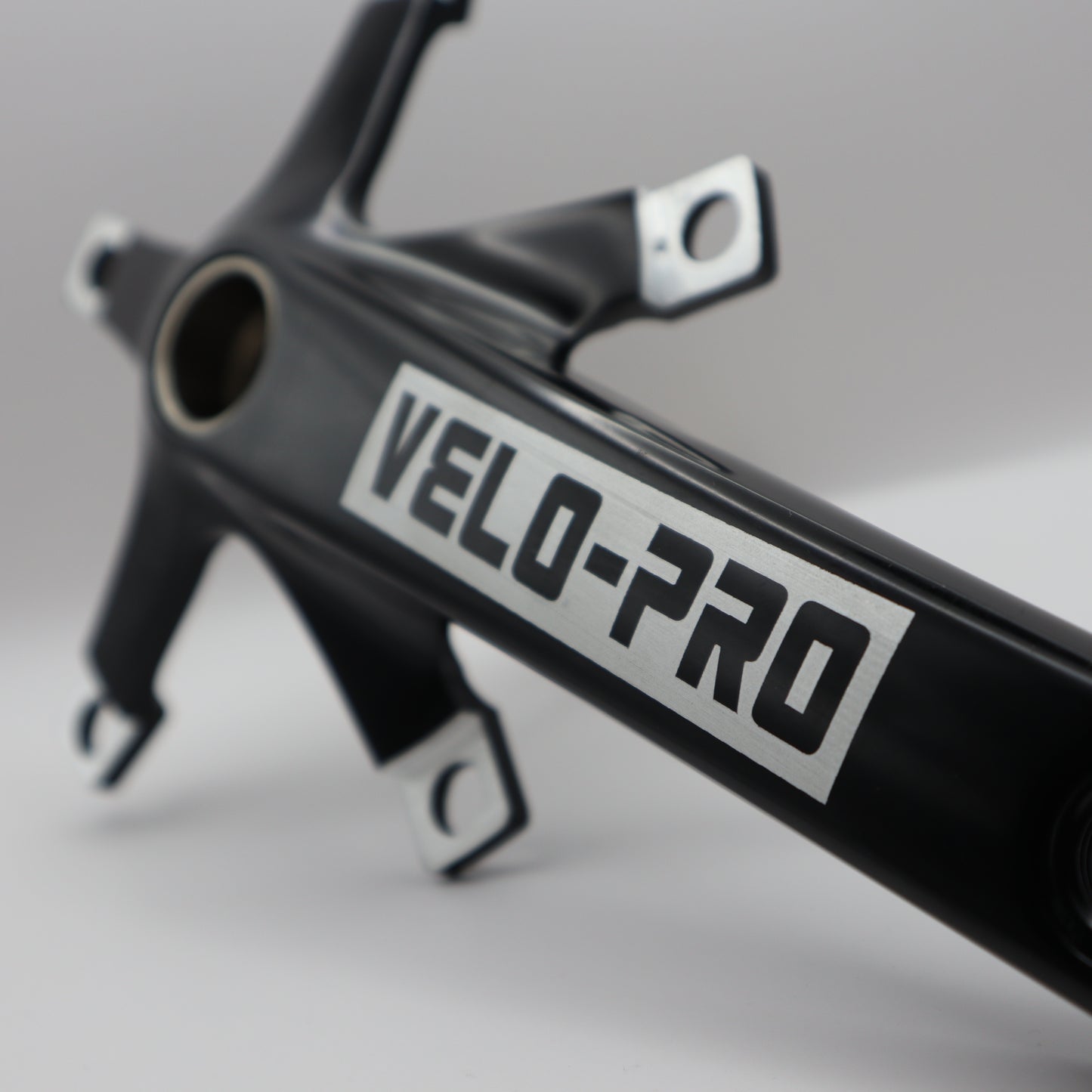

• 1x Lunar crankset
